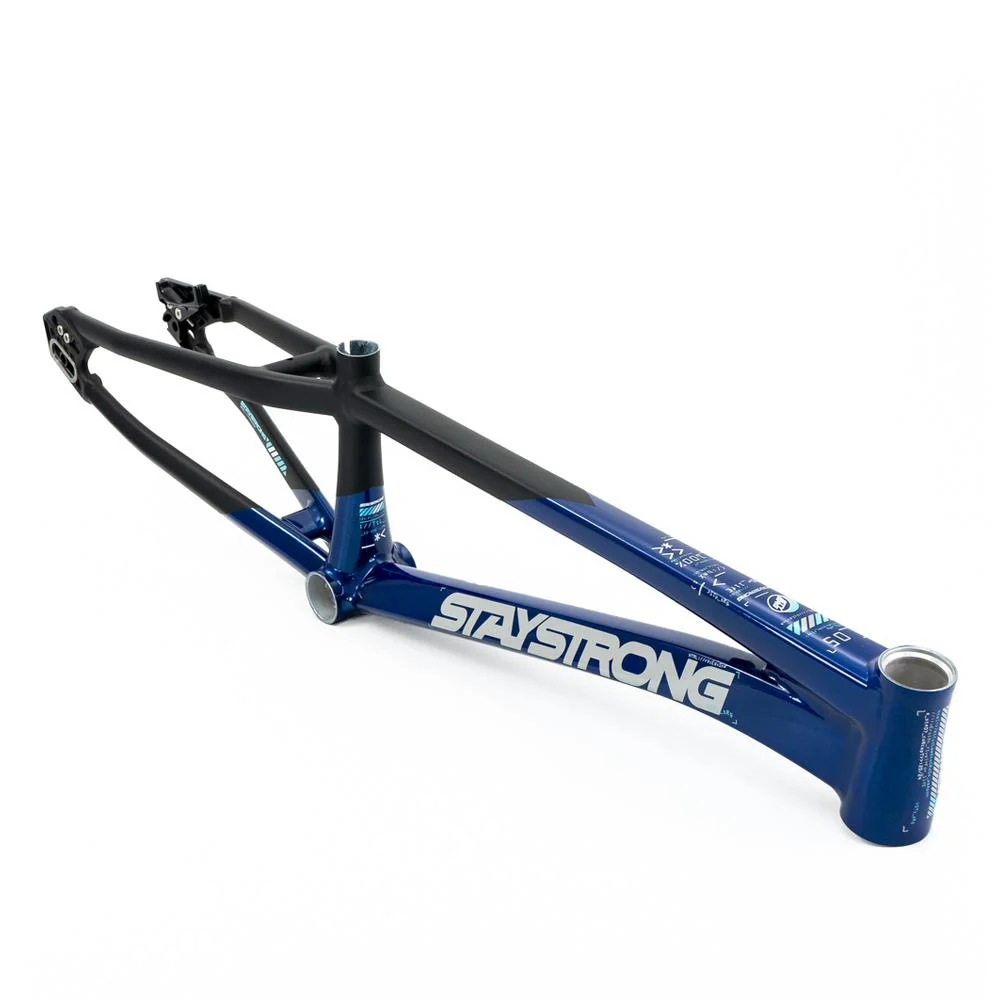

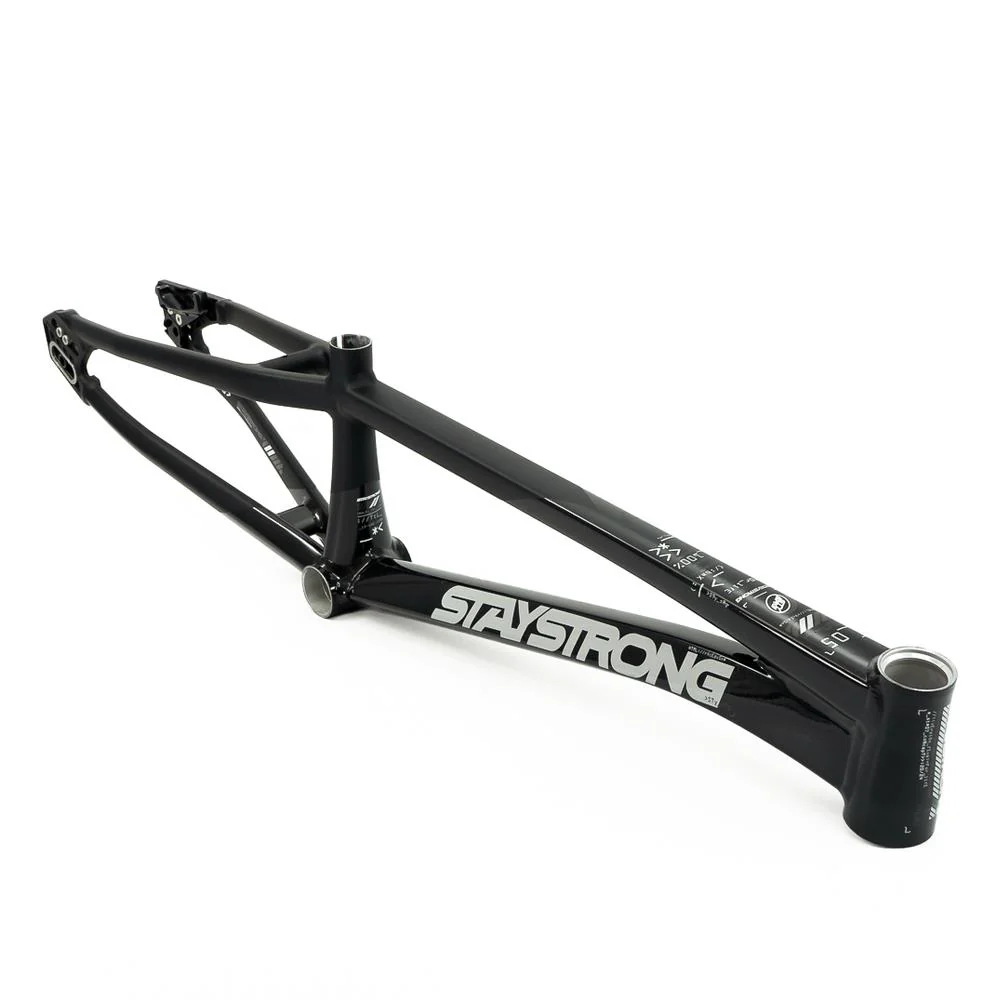

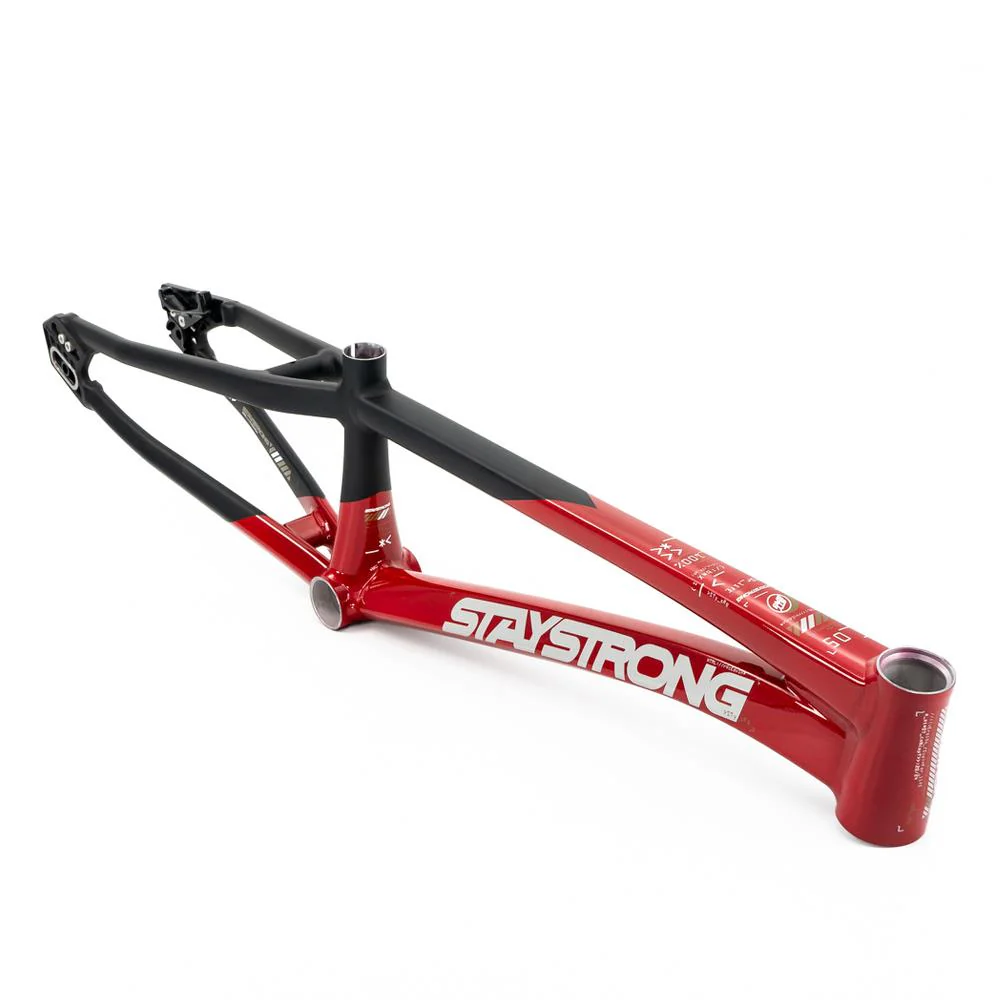

Stay Strong's refined V5 frame. The ultimate aluminium BMX race frame.

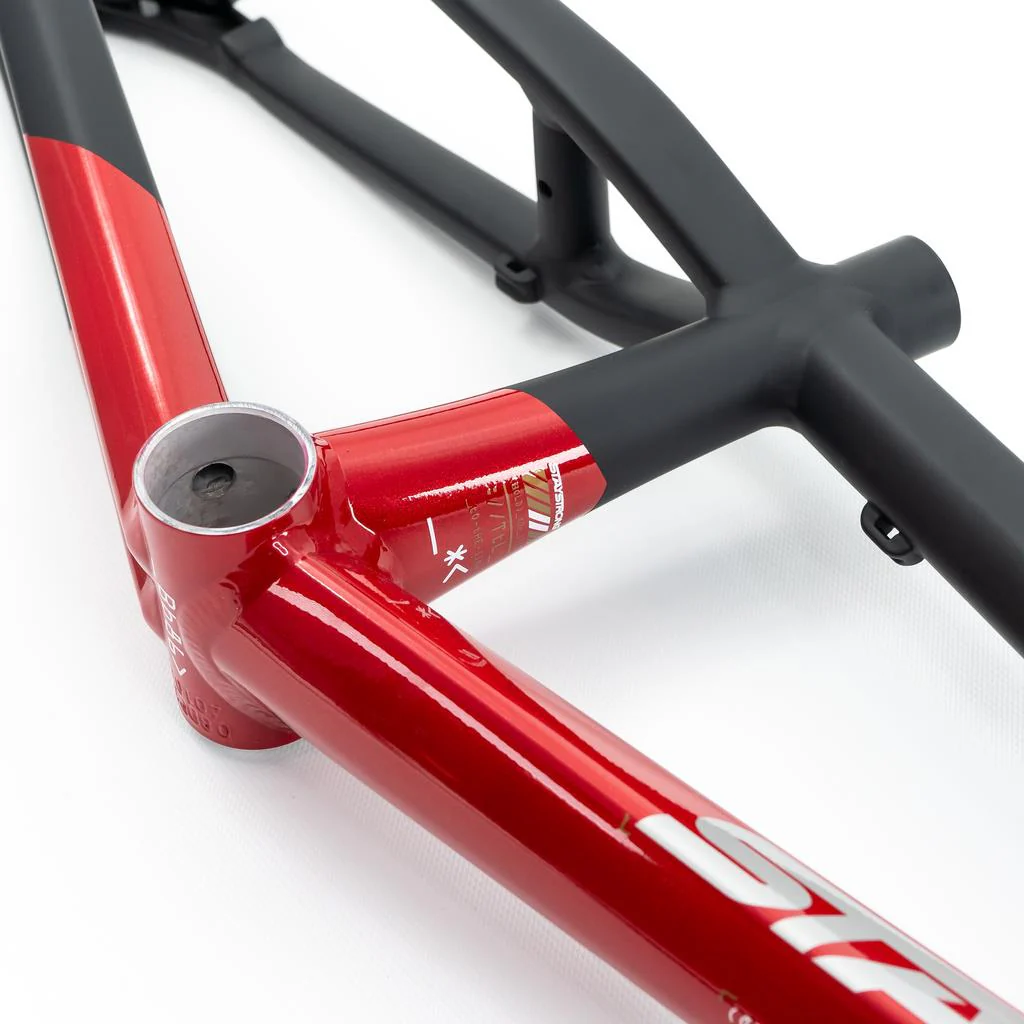

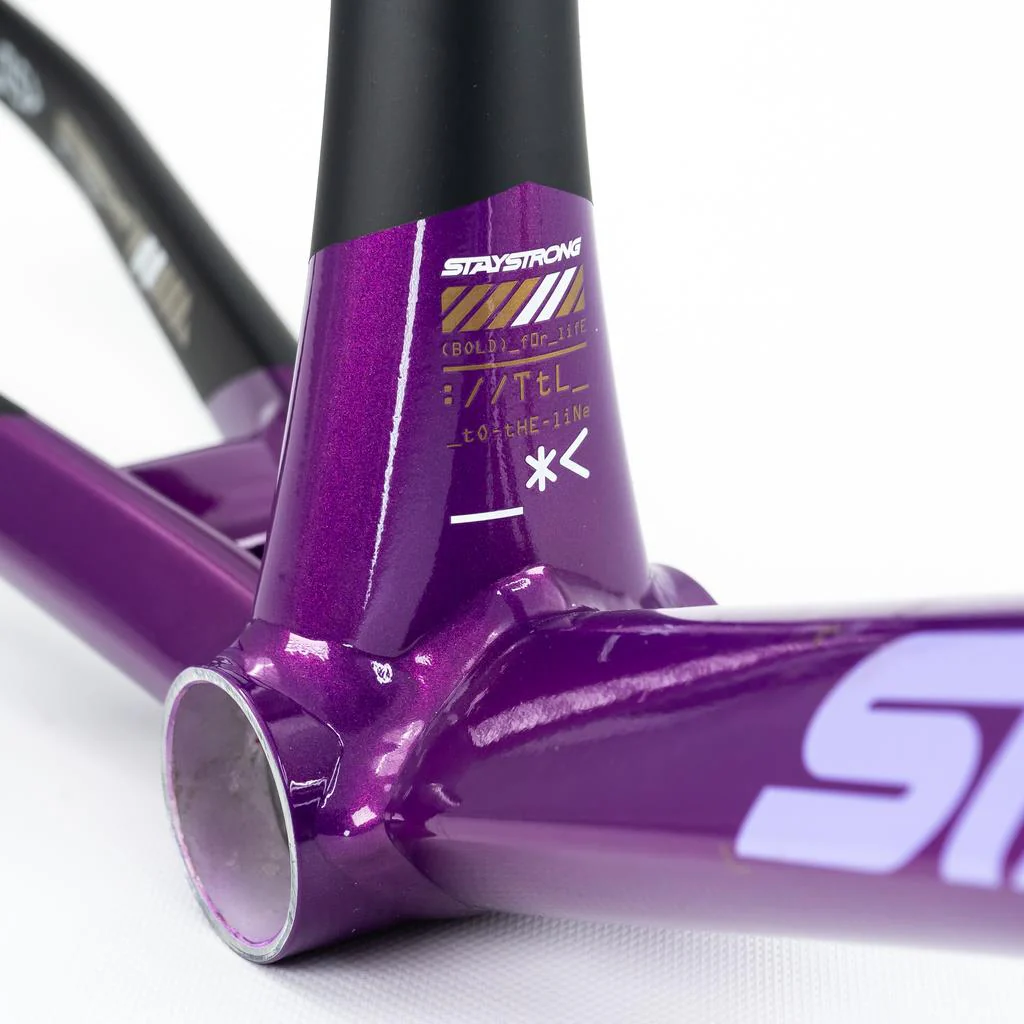

This is the Pro XL size with a 21.25” top tube. Stay Strong have been refining their race winning For Life aluminium race frames for years and we now arrive at the hugely impressive V5. As always Stay Strong have kept what wasn’t broken like the super stiff construction thanks to the BB86 and oversized seat tube/downtube/bottom bracket junction and the winning race geometry. The new V5 is their most technically designed and tested race frame yet, with new additional design features, whilst still incorporating the triple and double butted tubing, tapered head tube, smooth welds and the stiffer BB86 bottom bracket.

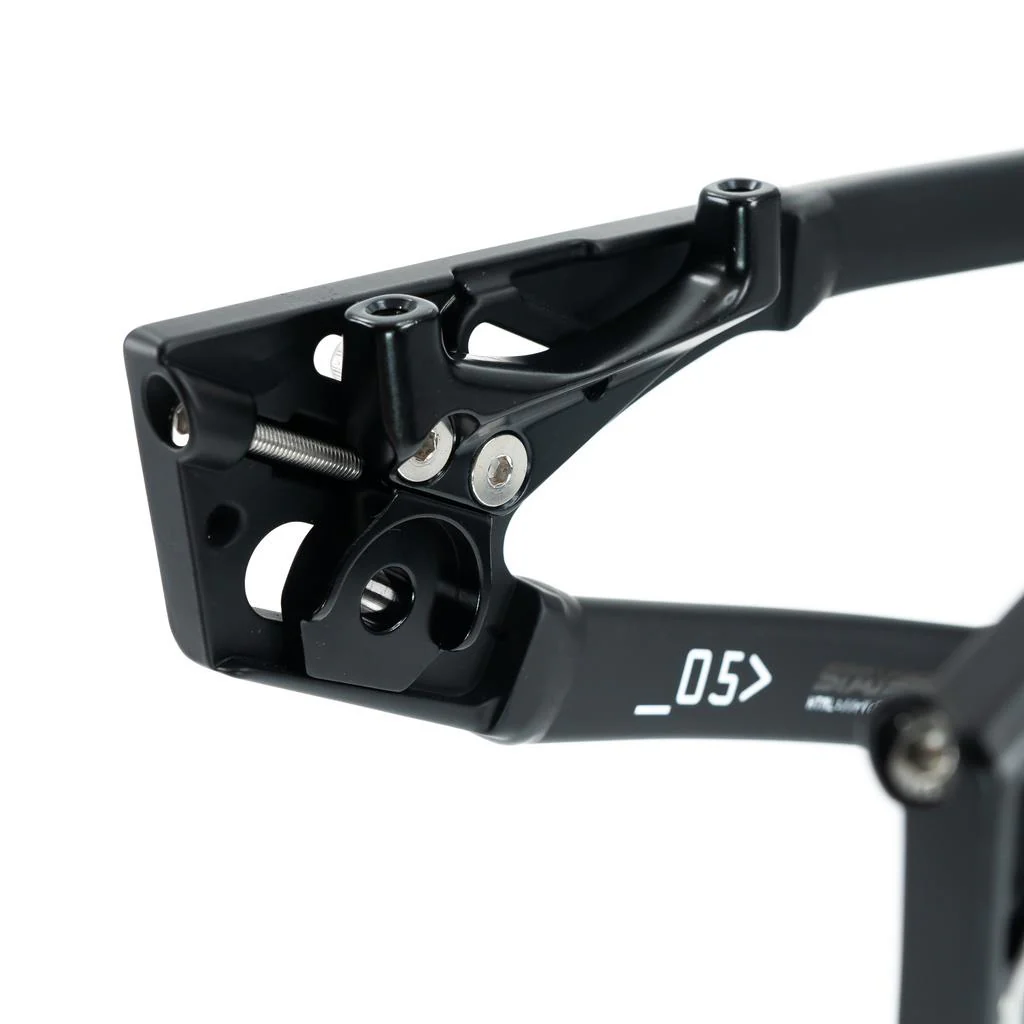

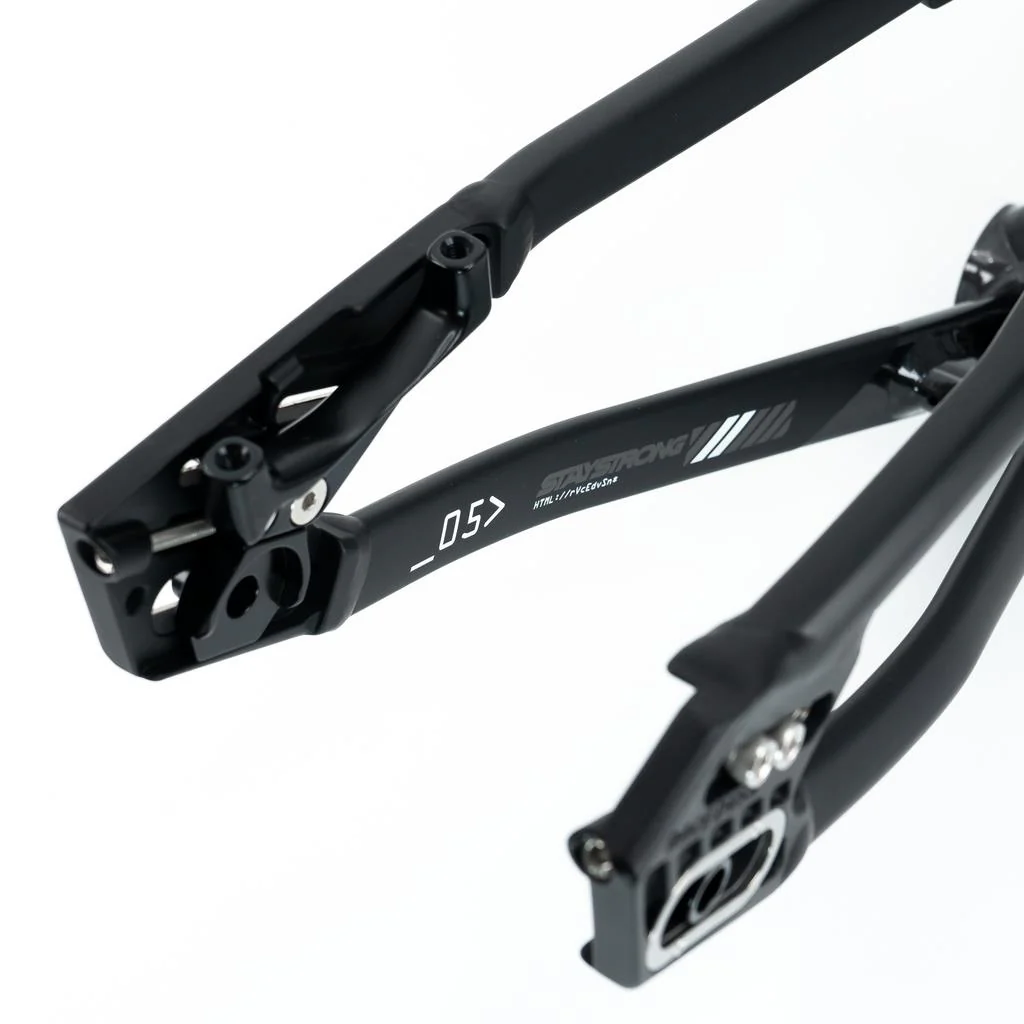

New refinements come in the addition of the bespoke Race DVSN dropout and 5 point drop out system which fixes the inserts and disc hanger to the frame for both ease of use and even greater rear end stiffness. The custom drop out allows for a taller seat stay, which in turn adds to a stiffer and wider back end. The rear access chain tensioners also make it super simple to adjust your wheel when needed. As well as all this added rigidity the drop out system allows for incredibly simple wheel and disc hanger alignment and adjustment.

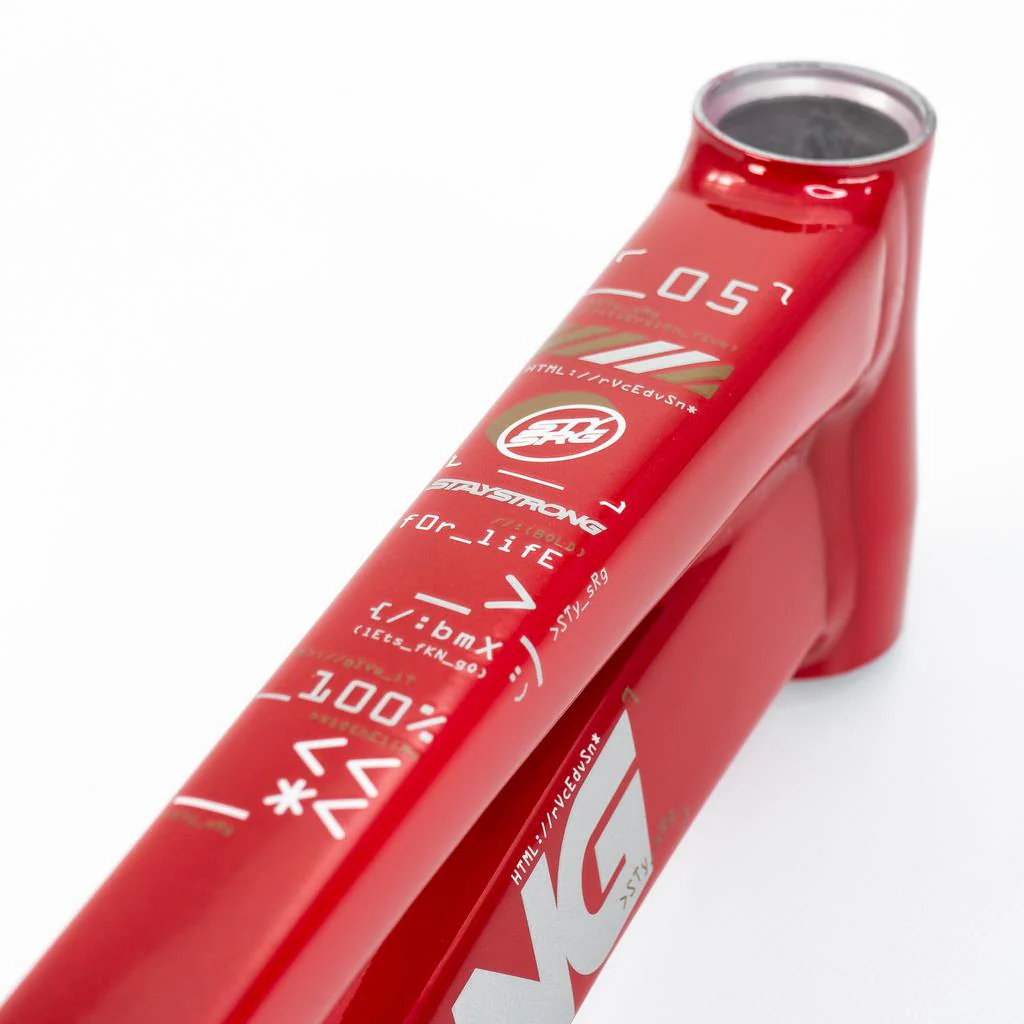

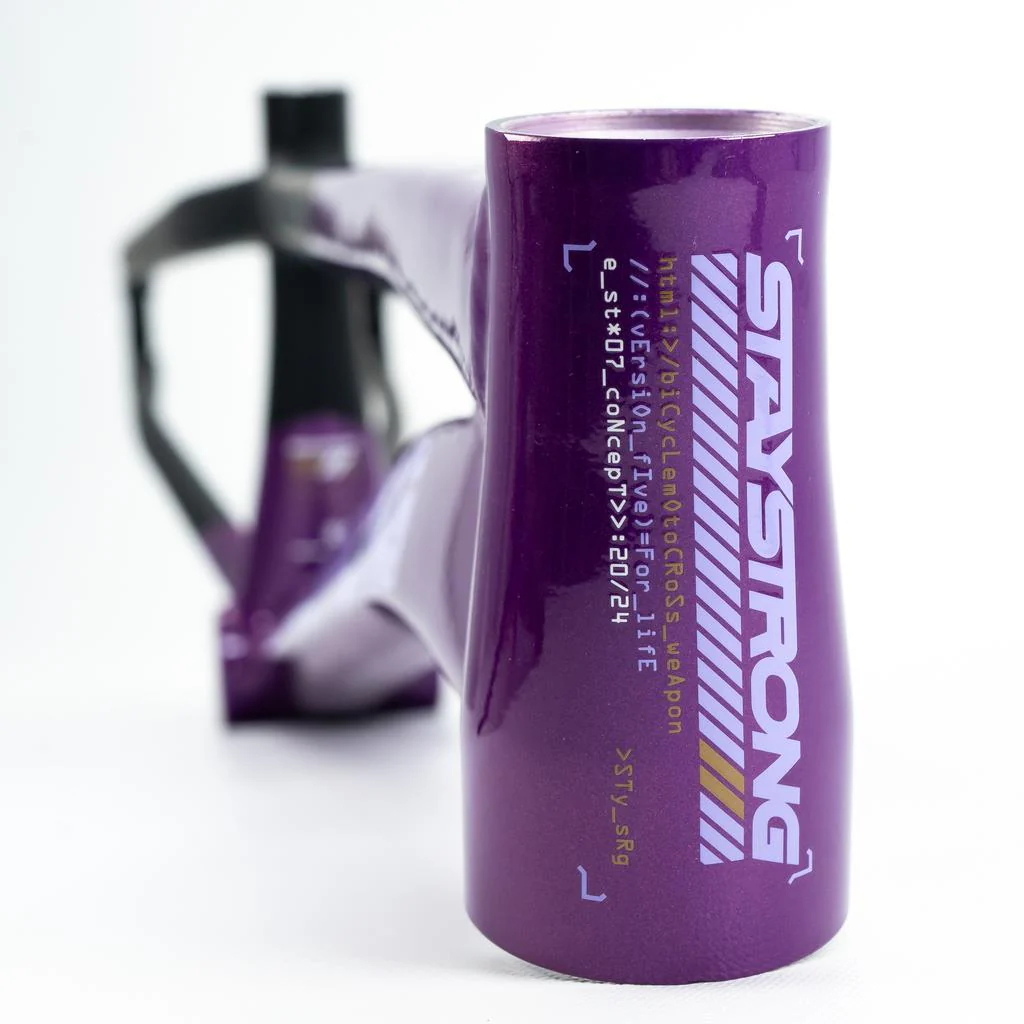

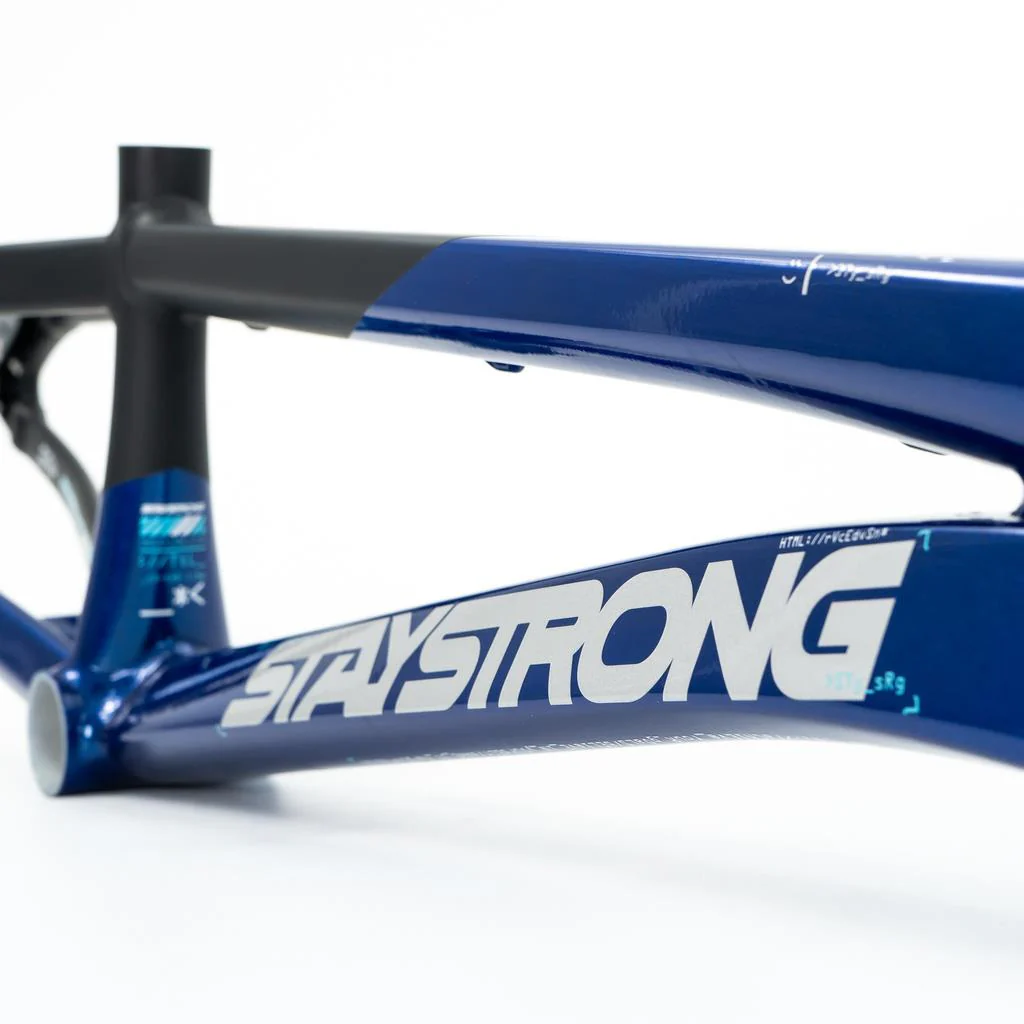

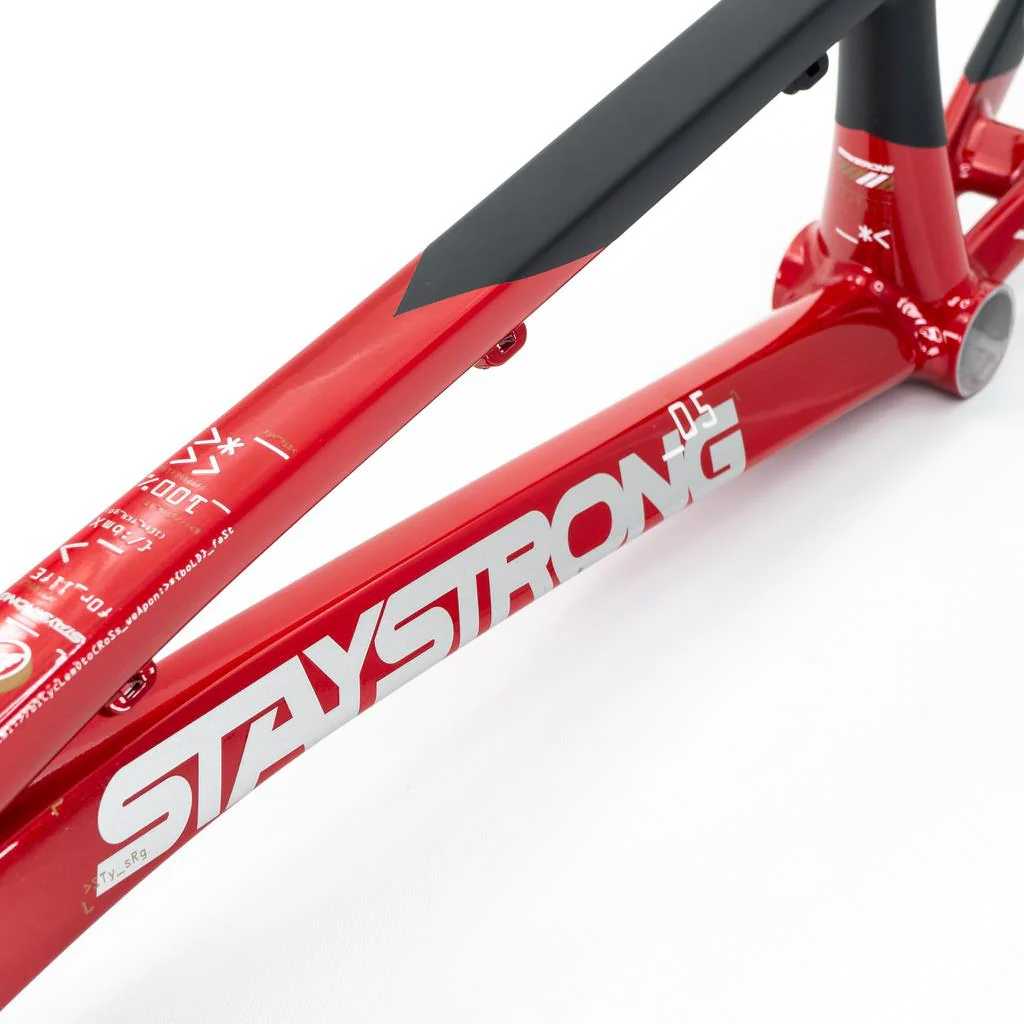

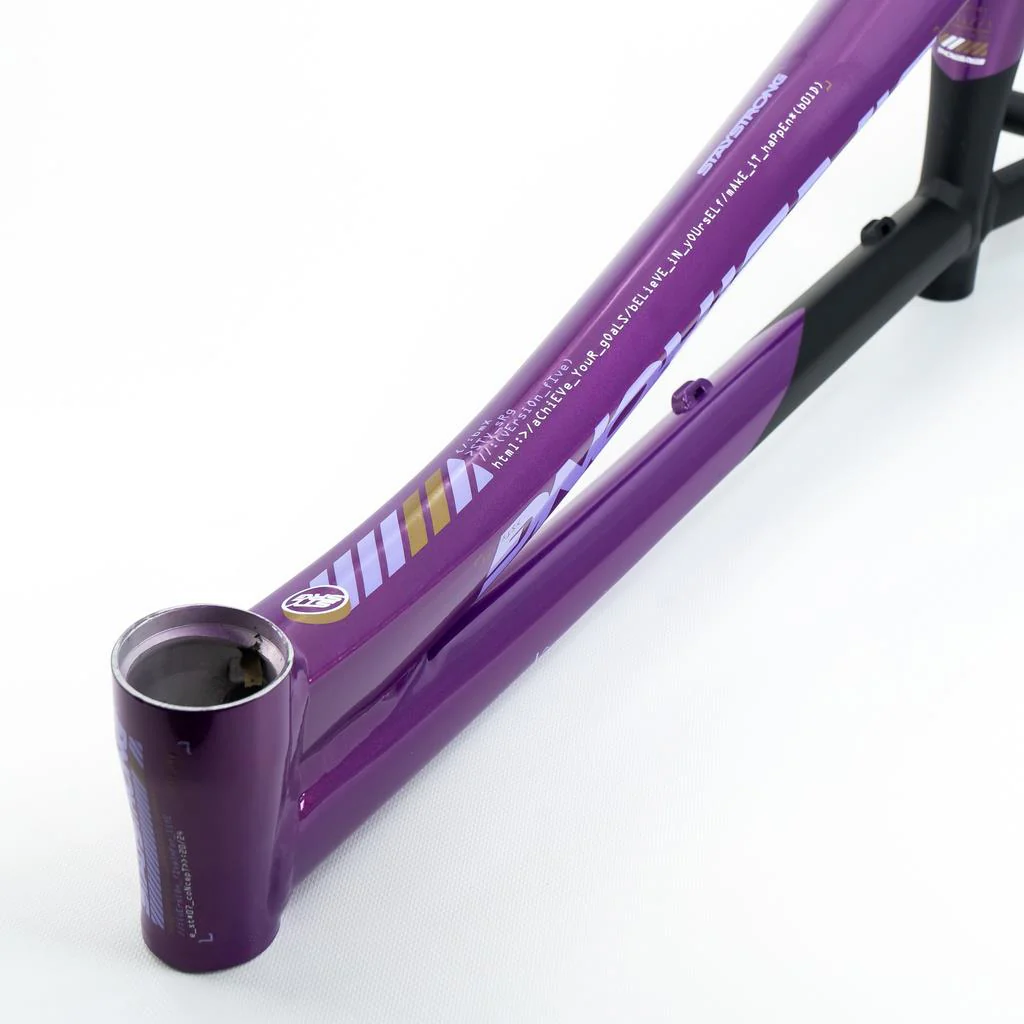

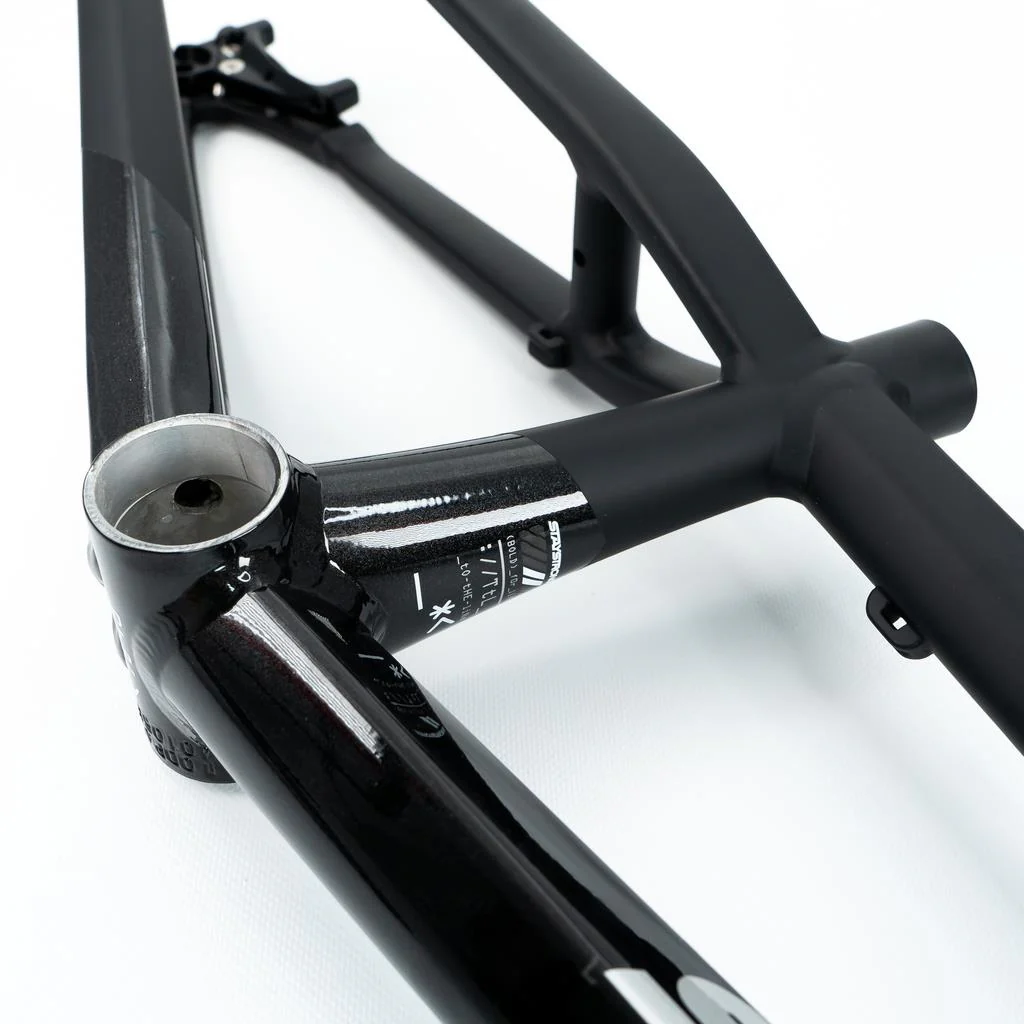

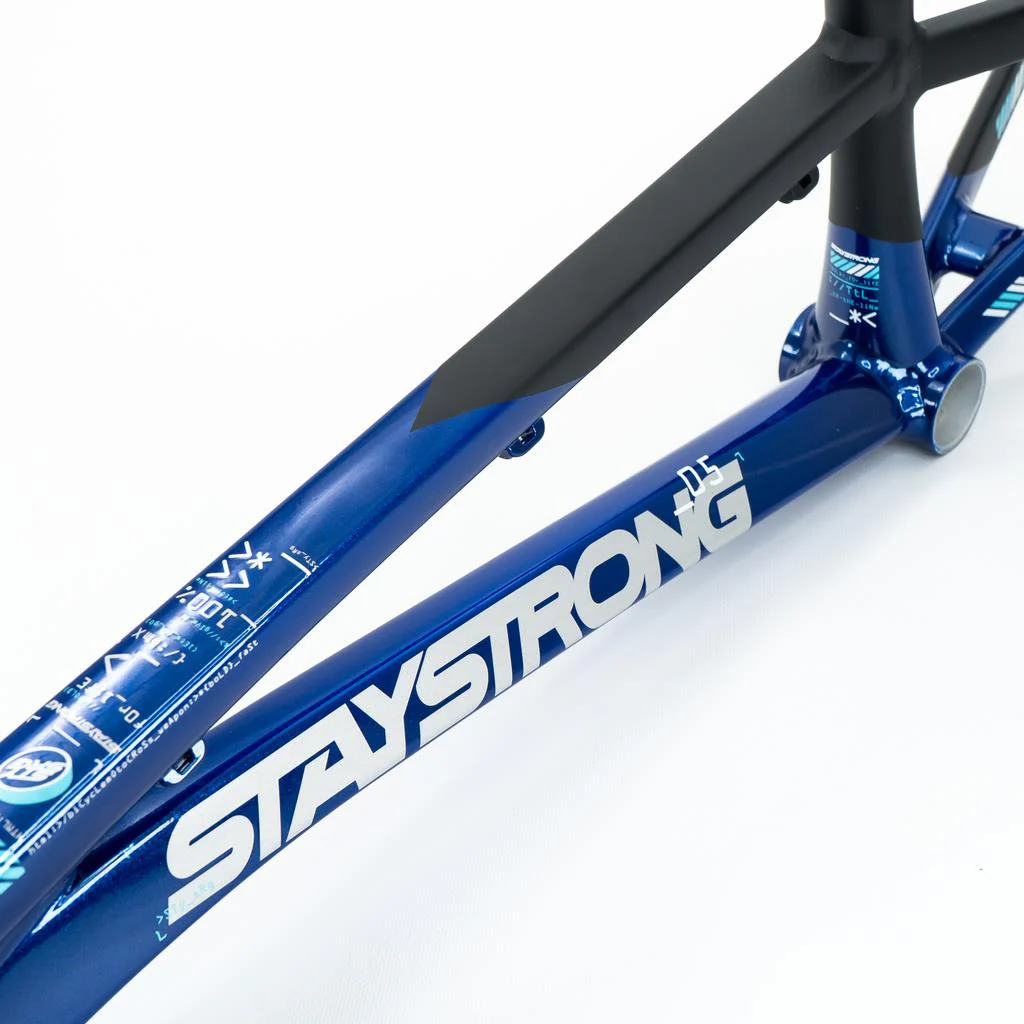

Stay Strong really push the boundaries with aesthetics and the V5 is no exception; All the colours feature a slick two tone pain finish mixing premium paint choices at the front with a classy matt finish at the rear. The water graphics have been updated too with "Stay Strong Code" which features tons of hidden messages throughout the design.

Compatibility Stay Strong V5 dropouts come with 10mm spacers and washers as standard. A custom 15mm thru axle kit available for anyone who wants to run a 15mm rear hub. Designed for use with a 140mm disc rotor.

###section###

Product Specs

1. MATERIALAluminium
2. TOP TUBE LENGTH21.25"
3. HEAD TUBE ANGLE74°
4. SEAT TUBE ANGLE
5. CHAIN STAY LENGTH14.7" - 15.6"
6. BB HEIGHT301.6mm
7. WHEEL SIZE20"
8. STANDOVER HEIGHT
9. DROPOUT SIZE10mm
10. HEADSET TYPETapered Integrated
11. BB TYPEBB86
12. SEAT TUBE DIAMETER
13. BRAKE MOUNTSDisc
14. WEIGHT1600g (3.52lbs)

###section###

Product Highlights

• BMX Racing specific geometry
• Race specific frame
• Strong and lightweight aluminium construction
• Butted tubing for added strength
• Integrated chain tensioners
